SOLUTION 2: a.) IMPORTANT CHANGE: Because we are revolving the region about the

$y$ -axis, we must make slices perpendicular to the

$y$ -axis at

$y$ !!! This ensures that the slices are CIRCULAR. Here are a carefully labeled sketch of the region, a rough sketch of the resulting Solid of Revolution, and a circular cross-section at

$y$ . In this example, the cross section is called an annulus, a circular region of radius

$R$ with a smaller concentric circular region of radius

$r$ removed. It is IMPORTANT to mark ALL of

$y$ ,

$r$ , and

$R$ in the sketch of the region !!!

tex2html_wrap_inline125 $\ \ \$ $\ \ \$

The area of the circular cross-section is

$A(y)= \pi r^2 = \pi (3- {3 \over 2}y)^2$ Thus the total volume of this Solid of Revolution is

$Volume = \int_{0}^{2} \pi (3- {3 \over 2}y)^2 \ dy$

SOLUTION 2: b.) Here are a carefully labeled sketch of the region, a rough sketch of the resulting Solid of Revolution, and a circular cross-section at

$x$ . In this example, the cross section is called an annulus, a circular region of radius

$R$ with a smaller concentric circular region of radius

$r$ removed. It is IMPORTANT to mark ALL of

$x$ ,

$r$ , and

$R$ in the sketch of the region !!!

tex2html_wrap_inline125 $\ \ \$ $\ \ \$

The area of the circular cross-section is

$A(y)= \pi R^2 -\pi r^2 = \pi ((3- {3 \over 2}y)- (-2))^2 - \pi (2)^2 = \pi (5 - {3 \over 2}y)^2 - \pi (2)^2$ Thus the total volume of this Solid of Revolution is

$Volume = \int_{0}^{2} \Big( \pi (5 - {3 \over 2}y)^2 - \pi (2)^2 \Big) \ dy$

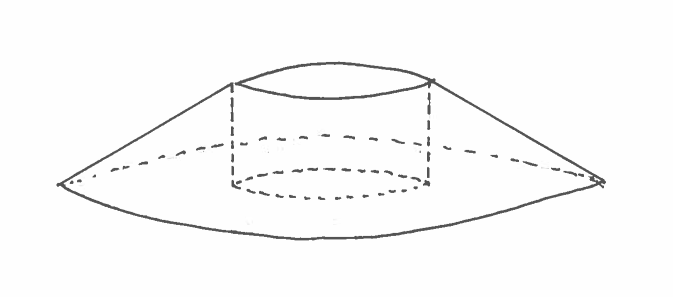

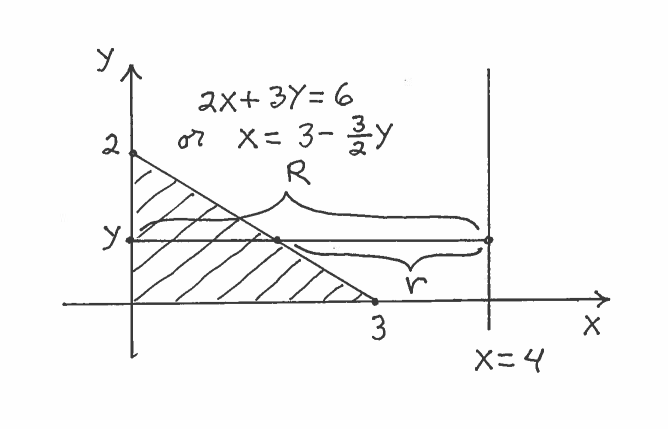

SOLUTION 2: c.) Here are a carefully labeled sketch of the region, a rough sketch of the resulting Solid of Revolution, and a circular cross-section at

$x$ . In this example, the cross section is called an annulus, a circular region of radius

$R$ with a smaller concentric circular region of radius

$r$ removed. It is IMPORTANT to mark ALL of

$x$ ,

$r$ , and

$R$ in the sketch of the region !!!

tex2html_wrap_inline125 $\ \ \$ $\ \ \$

The area of the circular cross-section is

$A(x)= \pi R^2 -\pi r^2 = \pi (4)^2 - \pi (4- (3-{3 \over 2}y)^2 = \pi (4)^2 - \pi (1+{3 \over 2}y)^2$ Thus the total volume of this Solid of Revolution is

$Volume = \int_{0}^{2} \Big( \pi (4)^2 - \pi (1+{3 \over 2}y)^2 \Big) \ dy$
